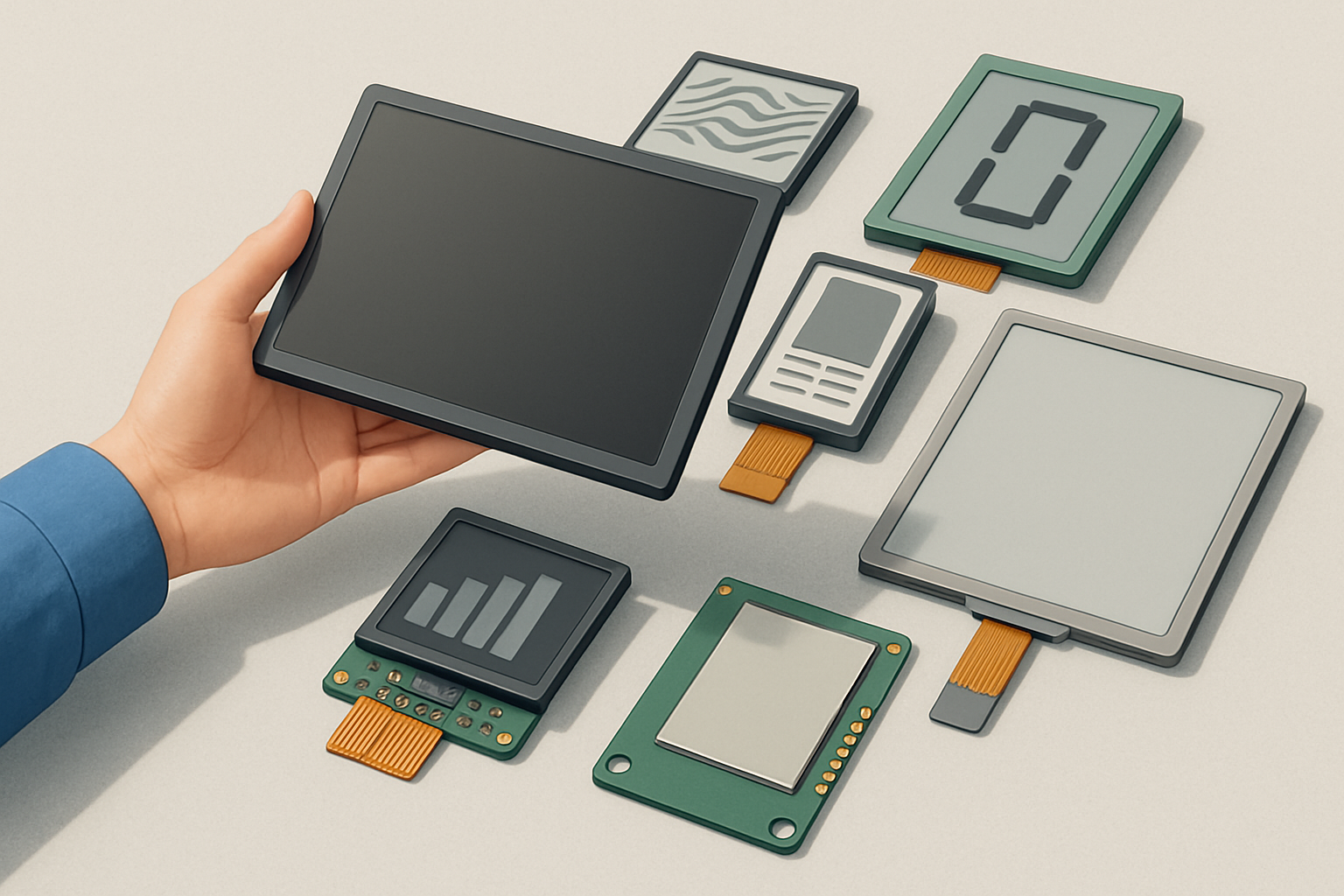

Display Selection for Battery-Powered and Low-Power Embedded Devices

Introduction

When designing battery-powered or low-power embedded devices, display selection plays a crucial role in ensuring that your device is not only functional but also efficient. The right display can significantly enhance user experience while extending battery life, making it an essential factor in the design process. In this article, we will explore important considerations for selecting displays for such applications, focusing on technologies like segmented LCDs, TFT displays, and the implications of power consumption.

Key Considerations for Display Selection

1. Power Consumption:
   The primary concern for battery-operated devices is power efficiency. Displays consume varying amounts of power based on their technology, brightness, and usage patterns. Here are some popular display technologies with their power characteristics:

   • Segmented LCDs: Known for their low power consumption, segmented LCDs are ideal for applications like energy meters, where constant display is required.
   • TFT Displays: While they offer higher resolution and color capabilities, TFT displays consume more power than segmented LCDs, making them less suitable for long-term battery-operated applications unless optimized.
   • OLED Displays: They provide vibrant colors and high contrast but can drain battery life quickly due to their illumination requirements.

2. Brightness and Visibility:
   For devices used in various lighting conditions, consider the display's brightness (measured in nits). Sunlight-readable displays are critical for outdoor applications. High-brightness segmented LCDs can be a good compromise between visibility and power efficiency.

3. Interface and Compatibility:
   Ensure that the display interface (SPI, I2C, etc.) is compatible with your microcontroller. Check the segmented LCD driver IC to facilitate easy integration with your existing firmware.

4. Size and Form Factor:
   The size of the display should fit the design requirements of your device. Smaller displays often consume less power but may limit the amount of information that can be shown. For instance, a 7-segment LCD display can effectively communicate basic information in a compact form.

5. Durability and Environmental Resistance:
   Depending on the application, the display should withstand environmental factors (temperature, humidity, etc.). BIBA Electronics, as a segmented LCD supplier in India, offers various options that can be tailored to meet specific durability standards.

How to Choose the Right Display

When selecting a display for battery-powered and low-power embedded devices, consider the following checklist:

• Determine Power Requirements:
  Assess the average power consumption during active and idle states.
• Evaluate Display Technology:
  Choose between segmented LCD, TFT, or other technologies based on your requirements for power, visibility, and color.
• Check for Sunlight Readability:
  Ensure the display can be read in various lighting conditions, if applicable.
• Compatibility Assessment:
  Confirm that the display can interface seamlessly with your device’s microcontroller.
• Consider Custom Solutions:
  If standard products do not meet your needs, explore options with custom segmented LCD design and manufacturing.
• Review Minimum Order Quantity (MOQ) and Lead Time:
  Understand the MOQ and lead times for your chosen display to align with your project timeline.

Pros and Cons: Segmented LCD vs. TFT Displays

Feature	Segmented LCD	TFT Display
Power Consumption	Low	Moderate to High
Display Quality	Limited Colors, Good for Text	High Resolution, Full Color
Visibility in Sunlight	High (if designed for it)	Moderate (depends on brightness)
Cost	Generally Lower	Generally Higher
Size Options	Compact	Varies, can be larger

Applications in Battery-Powered Devices

1. Energy Meters:
   Segmented LCDs are widely used in energy meters due to their low power consumption and adequate visibility.
2. Wearable Devices:
   Small-sized segmented displays are ideal for fitness trackers that require long battery life.
3. Medical Devices:
   LCD displays are commonly utilized in portable medical devices for vital sign monitoring, where power efficiency is paramount.

Conclusion

Choosing the right display for battery-powered and low-power embedded devices is essential for optimizing performance and enhancing user experience. With options ranging from segmented LCDs to TFT displays, understanding your application requirements, power constraints, and user needs will guide you in making the best selection.

For tailored solutions, including custom segmented LCD displays, consider BIBA Electronics as your trusted partner. Contact us for quotations or samples to assess our offerings in segmented LCDs and other display technologies.
